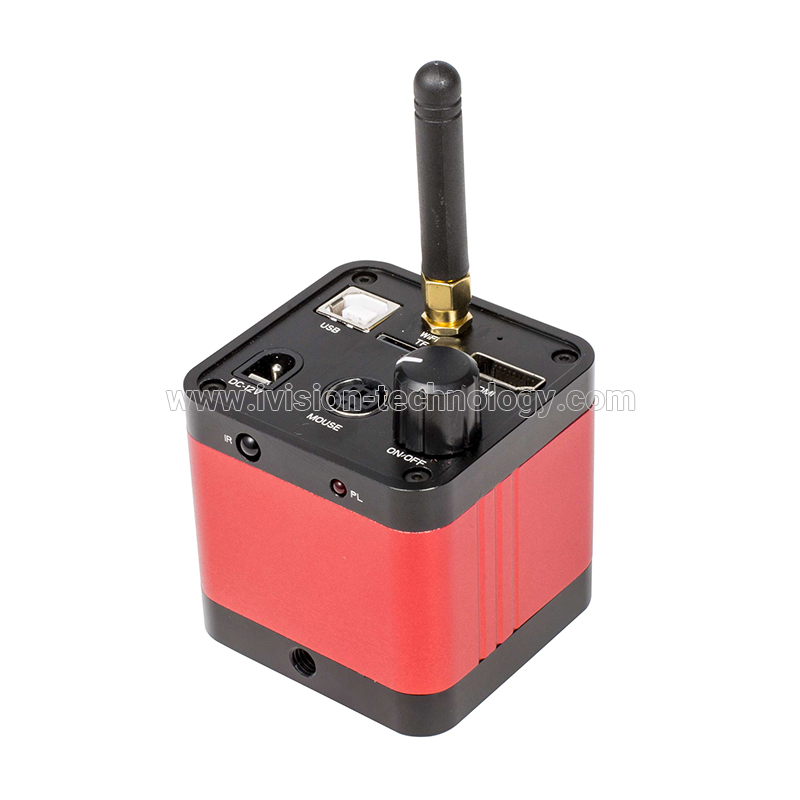

IVT VDMS14M 14.0 MP Electronic Video Microscope 1080P

IVT VDMS14M 14.0 MP Electronic Video Microscope 1080P

share
  • Detail
  • Parameters

Microscope

VDMS14M 14.0 MP Video Microscope from Youtube




Microscope

VDMS14M 14.0 MP Video Microscope






Specifications

VDMS14M 14.0 MP Video Microscope


Image Sensor14MP Panasonic 1/2.33 inch
Pixel Size1.43um x 1.43um
Video Resolution1080P30（Clear）、720P60（Smooth）
WIFI Output720x360@fps, Support Android and iOS (Optional)
Customized√
Zoom Rate1X～16X
Exposure controlAE Lock, Exposure Compensation (10 Level Adjustable)
White BalanceAuto, Manual (R、G、B 10 level adjustable) 、Calibration
Grid8 Groups, Position, Color, Thickness Adjustable
MeasurementPoint, Line, Circle, Angle (Optional)
IR RemoterMax 5 Meters
WIFI AntennaSMA (Optional), Max 10 Meters
TF Card SlotMax Support 32GB
LensSuitable For C Mount or CS Mount
Comparison of PIPFull Screen, Left and Right, Up and Down, 1/4
TV Output

Support AV and HDMI 1080i 60fps

Mouse InterfacePS/2
HDMI InterfaceTYPE-A
USB InterfaceTYPE-B USB2.0
Dimension56mm（L）x 54mm（W）x 78mm（H）(Wifi Antenna Not Included)
Weight185g（With WIFI）/ 175g（Without WIFI）























Microscope wih Screen

VDMS14M 14.0 MP Video Microscope



Microscope with Screen.jpg


Performance

VDMS14M 14.0 MP Video Microscope


Microscope (1).jpg


Microscope (2).jpg




Model
VDMS14M
Screen
Red
Camera
1080P30（Clear）、720P60（Smooth）
Battery
None
Colors
RED/GOLD/BLACK
Zoom
1X-16X Magnifications
Option
WIFI Antenna SMA
Special
WIFI(Option)/Mouse Control
Weight
185g（With WIFI）/ 175g（Without WIFI）
